M1 Details

recordplayer M1 details

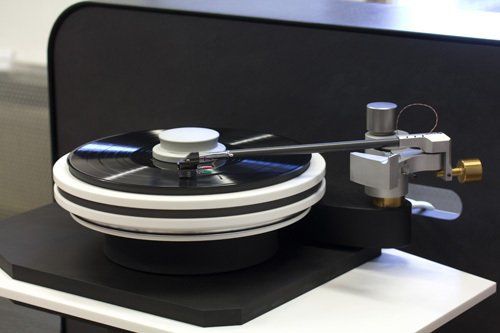

The M1 is a novel anti-vibration solid recordplayer and offers an above average sound reproduction quality. It has a uniquely calm sound. Described pictorially, it is high resolution on a deep black background. This benefits the listener through relaxed and enjoyable listening to music. Developed by Dipl. Ing. Engineer Ralf Wölfel, who completely rethought the physics of sound reproduction. The technology behind it: Each individual component is optimized to the limit of what is technically feasible to avoid disruptive vibrations. A turntable cannot do more.

Award winning design


The puristic design of the M1 conceals its technically complex inner workings in an unobtrusive, light way. The design was awarded the  European Design Award in the category Winner 2020.

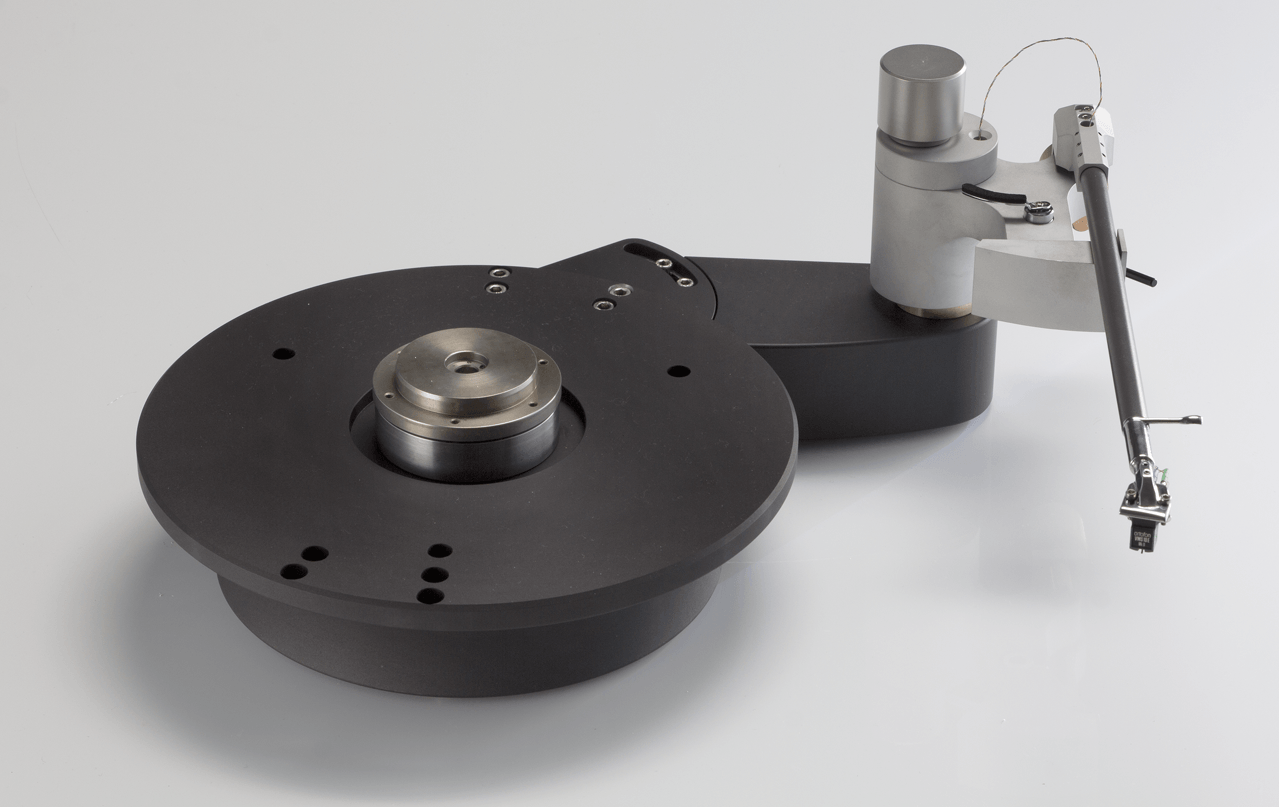

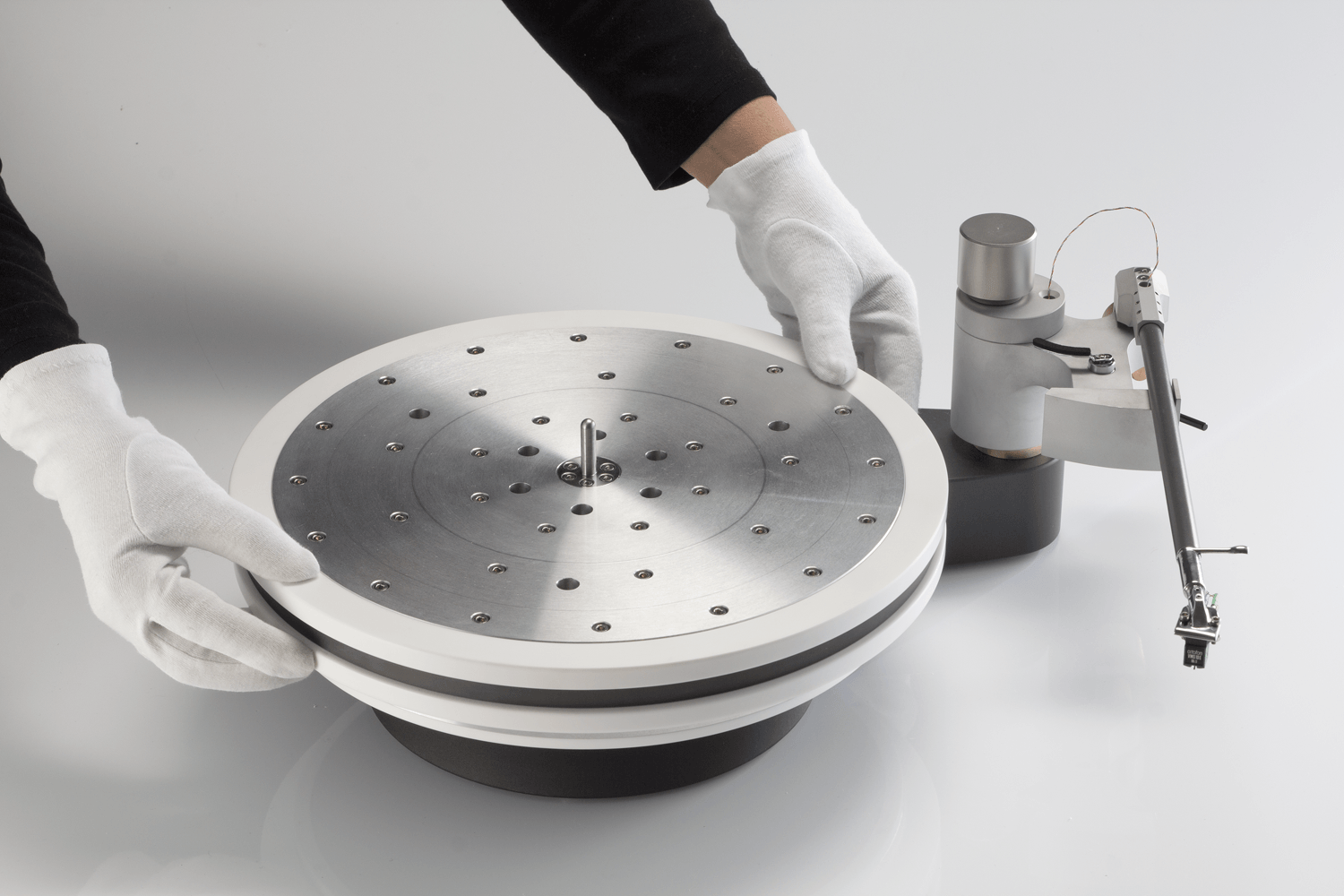

Stiff & damped = sound optimized


The platter is the heart of this turntable. We have six solid layers  consisting of Corian®, aluminum and graphite joined together in a sophisticated way. The result: An extremely stiff and ultra-cushioned unit. Disturbing oscillations are prevented. An effect that is sound image noticeably positive makes noticeable.

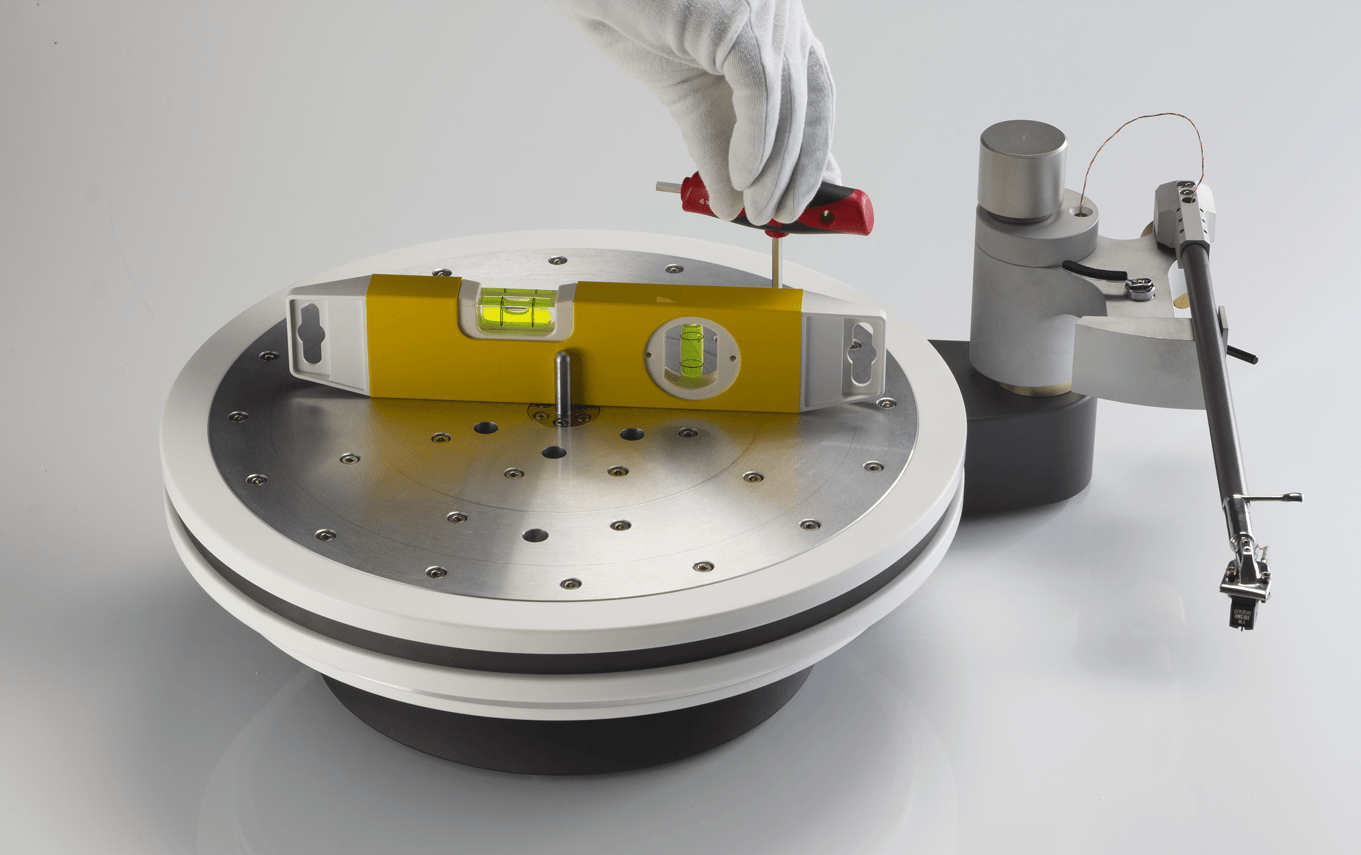

Easy balancing


The platter can easily be brought into balance by adjusting the spikes located on the lower pot. These are adjusted through the platter with the supplied hexagonal pin wrench.



Stablizing & quiet running


The platter bearing is a patented one Ars Machinae new development. It cleverly combines the advantages of various common bearing variants. It's so user-friendly.


The technology behind: Despite its upper position, the bearing ball is in permanent contact with oil. So that's the turntable optimally stabilized and at the same time smooth running and wear-free. Thus, the turntable bearing contributes to a perfect music reproduction quality.

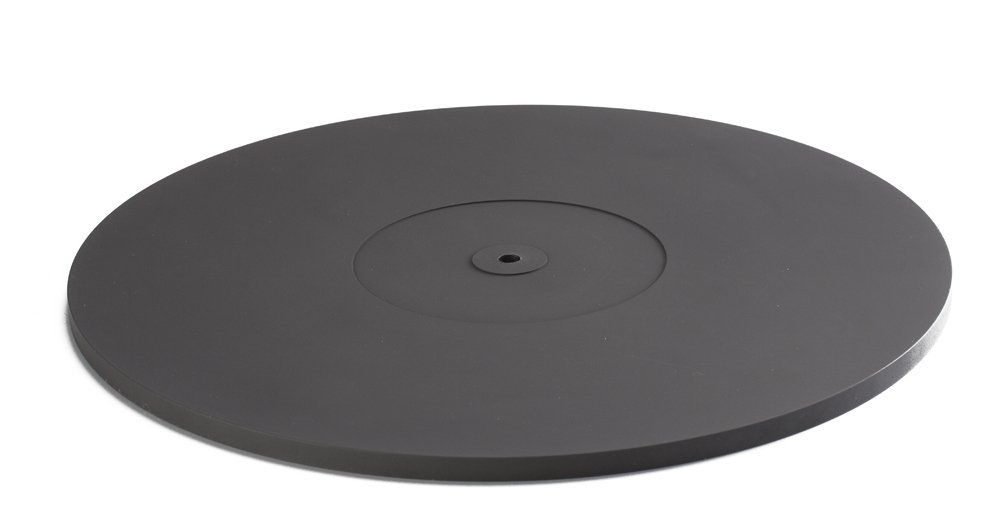

Damping & electrically conductive


The platter overlayer consists of an 0,31 inch thick graphite plate. In the middle there is a concav shape. Together with the record clamp forms a unit that optimally presses the record and smooth running for the cartridge offers.


Now the record is damped. This allows for interference-free sampling. The result is the natural sound from the groove.


Note: We also offer this combination for other turntables as a set.

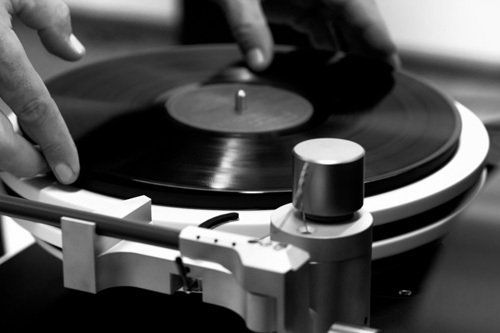

Good record handling


The platter overlayer allows also a good handle, because you can easily reach under the edge of the record.

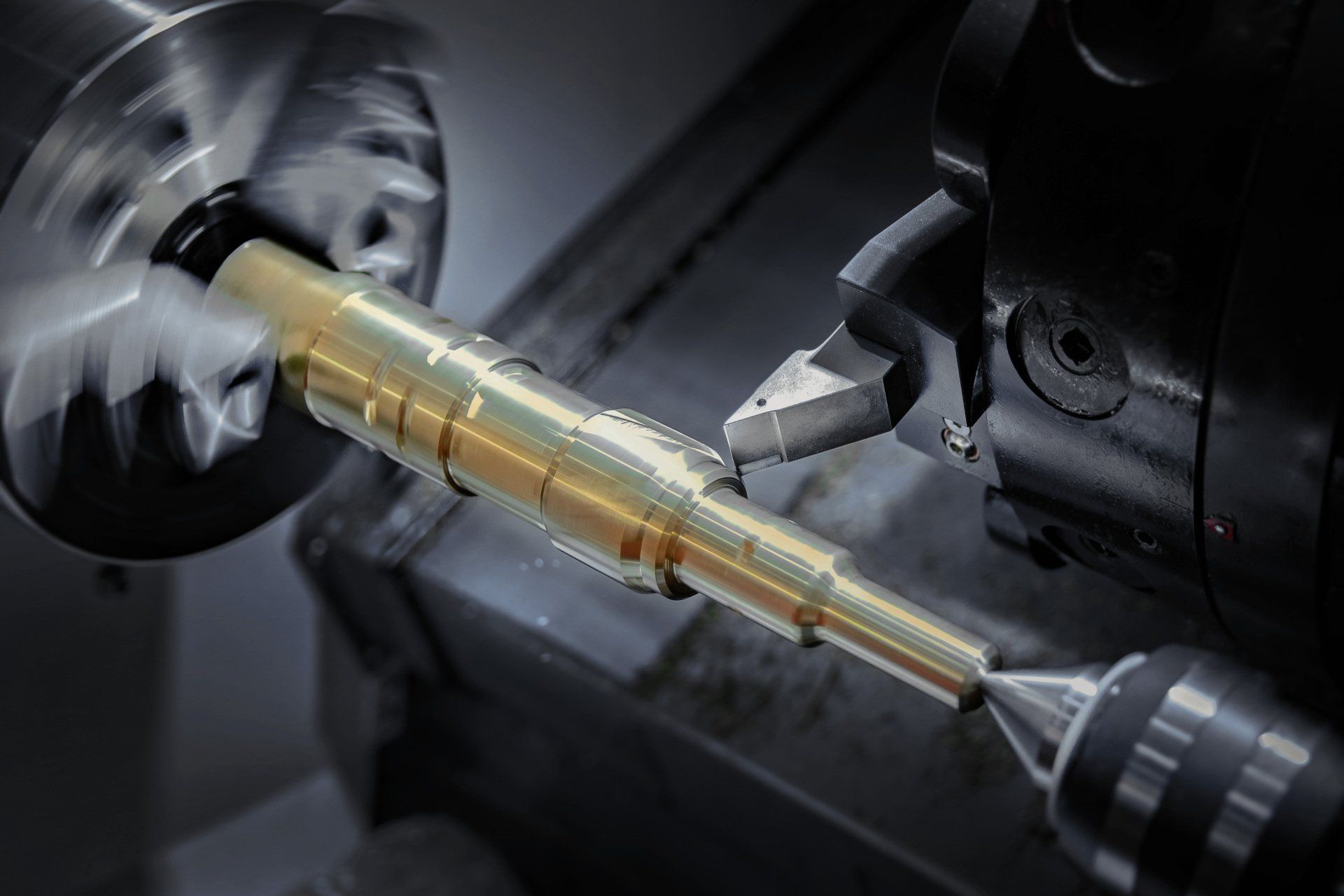

High precision manufacture


High-quality use of materials: The individual components are made of solid blocks of aluminum and bronze. Uncompromising materials of the highest quality, purity and environmental compatibility are used. Manufactured in Germany by our regional partners working for precision engineering on highly sensitive and precise CNC milling machines or CNC lathes.

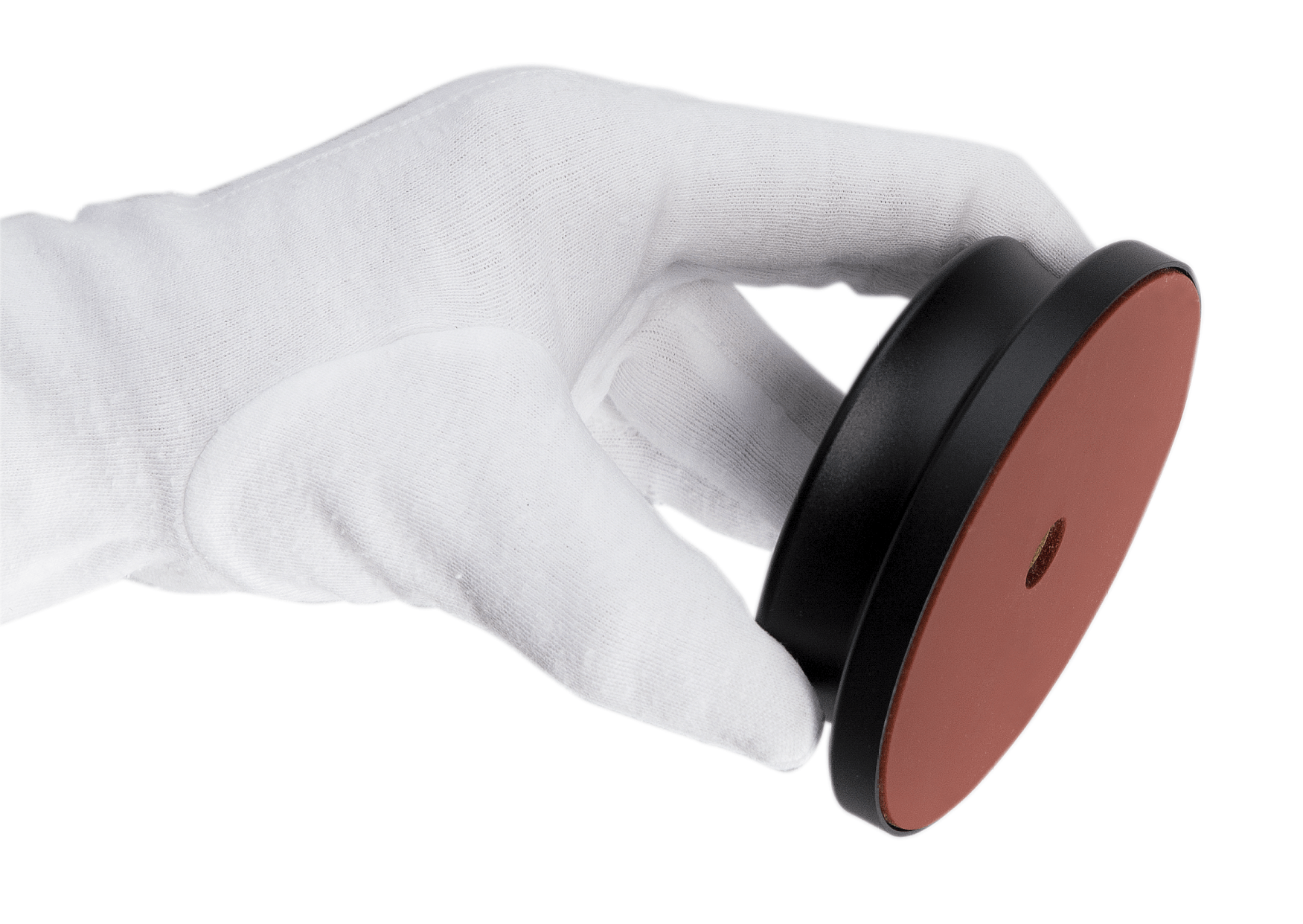

Clamp with damper


The record weight  (clamp) is patented with an innovative cushioning system equipped in cooperation with the University of Bayreuth and the Fraunhofer Institute was developed by us. The combination of weight and cushioning ensure a detailed and high-resolution sound reproduction.  It weighs 22,93 oz and thus very efficiently presses the record onto the platter. The ergonomic shape enables a pleasant feel, which many of our customers notice positively again and again.

Analog drive


The turntable drive by means of straps works according to the highest technical and audiophile standards. The operation of the motor generator is purely analog. Any kind of quartz generators and digital frequency dividers are deliberately avoided. The speed is adjustable to 33 1/3 and 45 rpm.

Damped rigid tonearm


Our tonearm Lignum R  was optically and functionally developed by us especially for the TM1/M1: The 12.2 inches tonearm tube made of a wood-carbon combination ensures effective damping and high rigidity. In this way, disruptive vibrations are effectively suppressed and the sound reproduction quality increased.


Note: We also offer our tonearm separately for other turntable models.

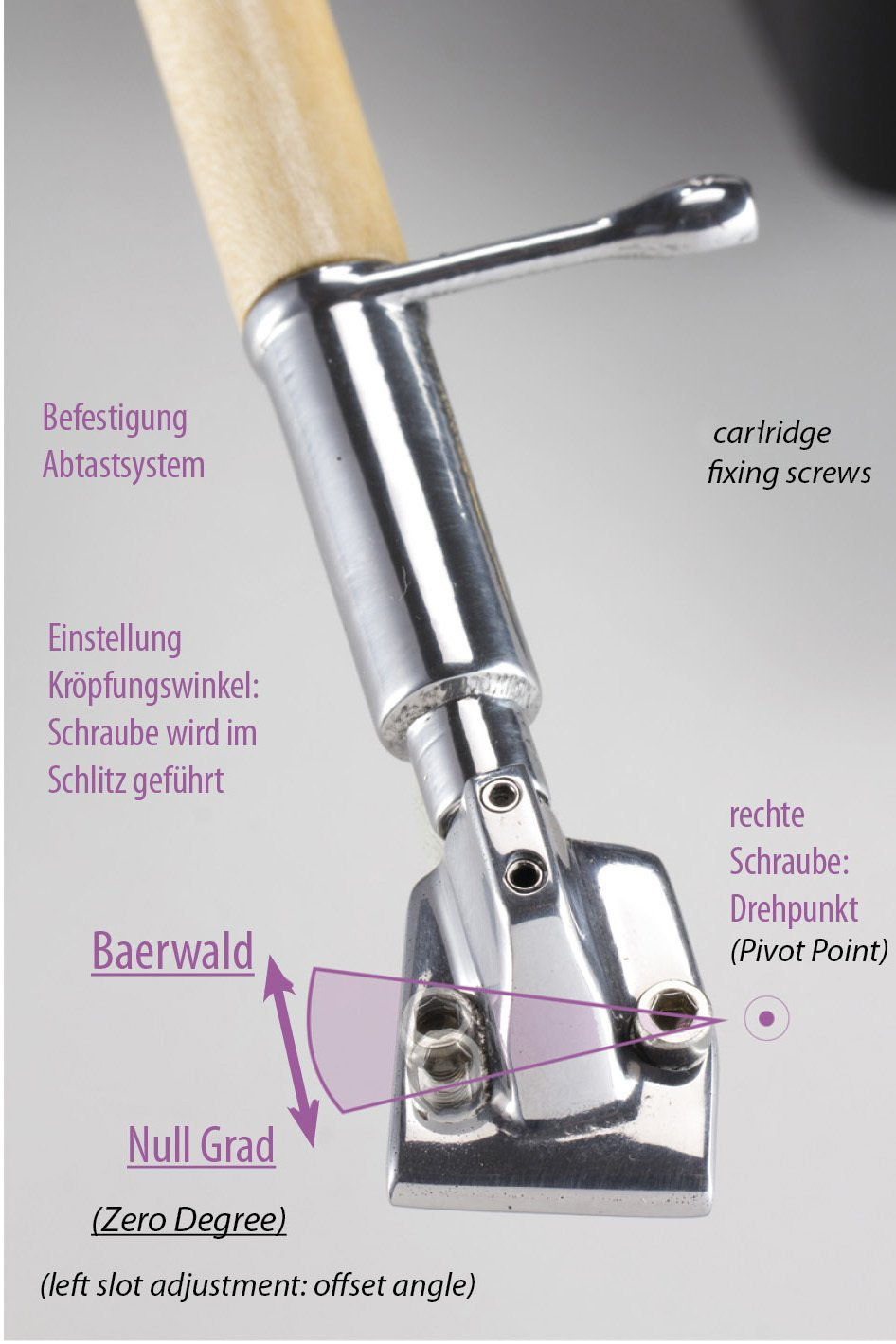

Choosing two different geometries


In the first step with offset angle to Baerwald or one rigid straight lead (Zero degrees). This selection offers additional possibilities for audiophile experiments.


In the second step the stabilization of the tonearm bearing is then adjusted to match the selected offset angle on the bearing housing.


In the third step, the overhang/underhang must also be adjusted with the center distance adjustment function (pivot to spindle distance) to match the selected tonearm geometry.

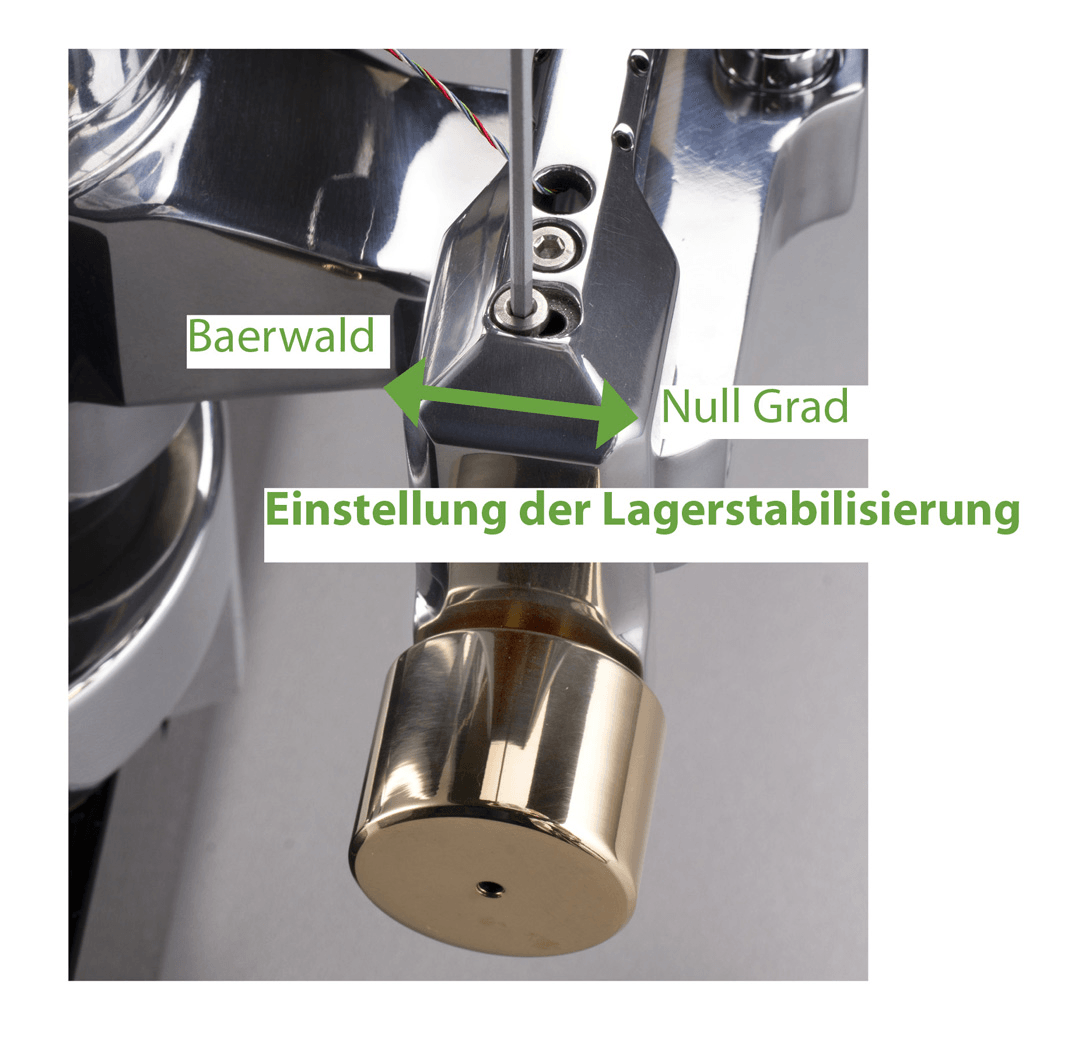

Easy adjustment of the tonearm bearing stabilization


On the bearing housing of the tonearm, the tonearm bearing stabilization set to match the selected offset angle. This is done by adjusting the screw in the slot.


We have stabilized the one-point bearing of our tonearm because it makes it easier to use when placing it on the record. This is how we eliminate the usual "annoying wobbling of typical one-pointers". In addition, we have installed this stabilization for both tonearm geometries.


It doesn't matter whether you operate the tonearm straight or with an offset - it is always stabilized.

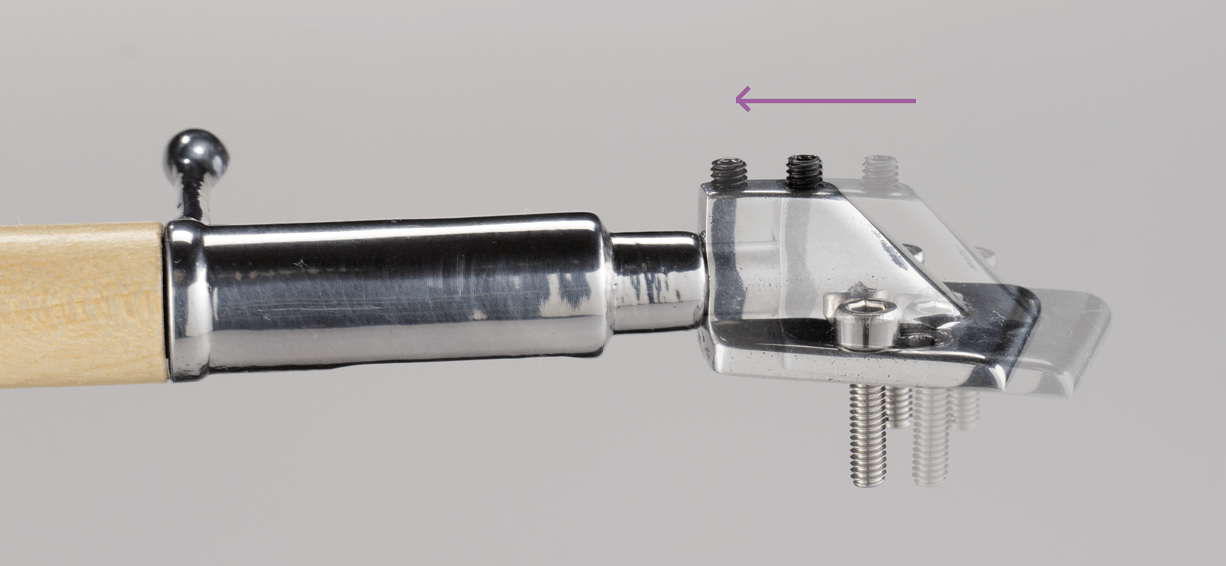

Stiffened head shell


The head shell can be removed without an additional cable separation point and is extremely rigid. This measure avoids unnecessary disruptive factors that could affect the sound. At the same time, the cartridge can be conveniently installed. Especially if it doesn't have threads.


For assembly, the head shell is simply placed on the sleeve and fixed with the two threaded pins on top.


The handling aid is located at the back of the sleeve. We want to avoid interfering signals and have therefore placed the position as far away from the cartridge as possible.

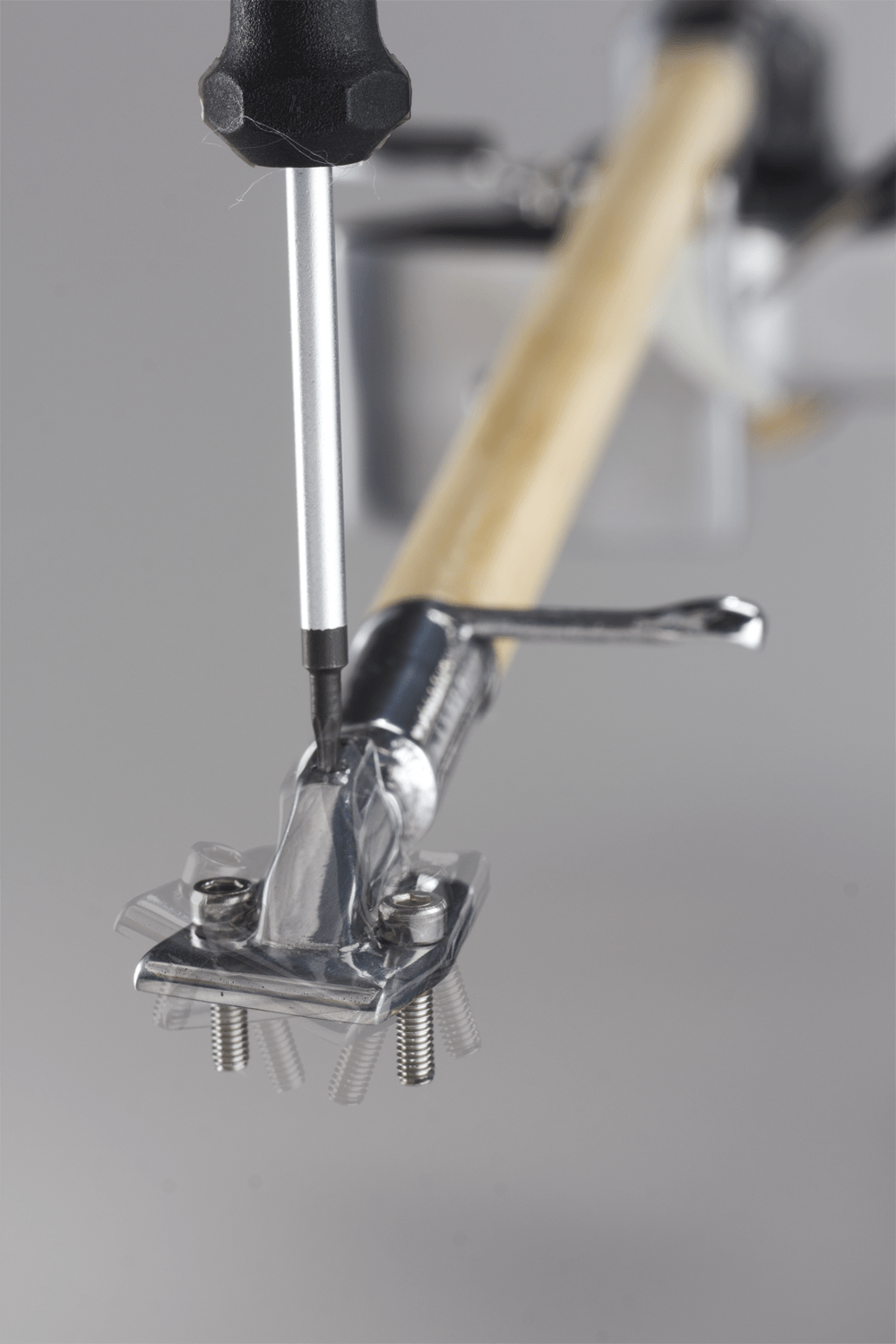

Easy azimuth adjustment


The grub screws at the top of the head shell have another purpose: they are used to adjust the azimuth. The head shell is straight at the front edge, aligned horizontally. This provides visual orientation while adjusting  the cantilever/ stylus tip in the right position.


Tip: If the voices are not in the middle during the listening test, you can adjust this using the azimuth.

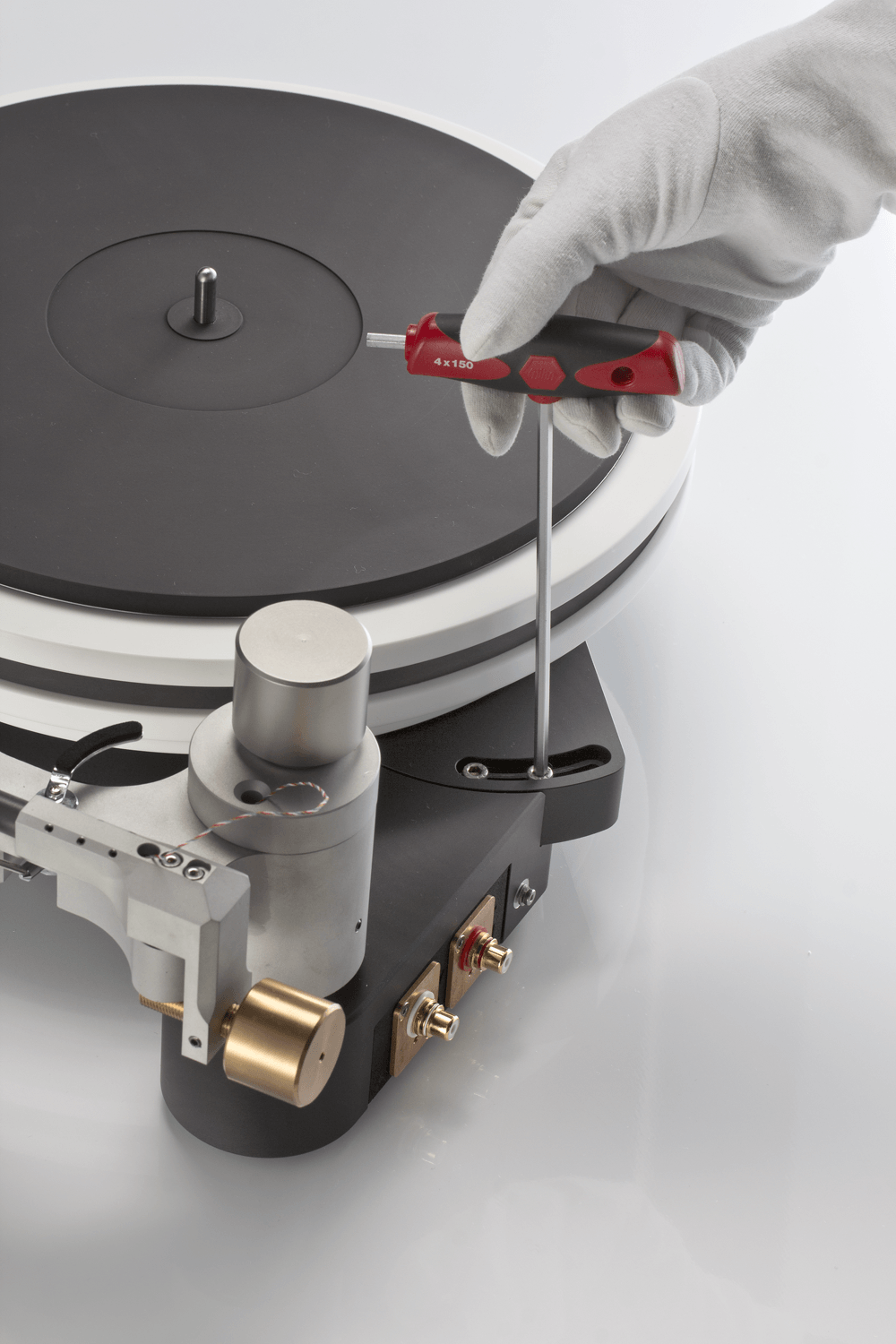

Setting the distance P2S


Horizontal tonearm geometry: The entire tonearm base is swiveled to adjust the center distance.


This is needed for the adjustment of the tonearm geometry (pivot to spindle distance / change between overhang and underhang).

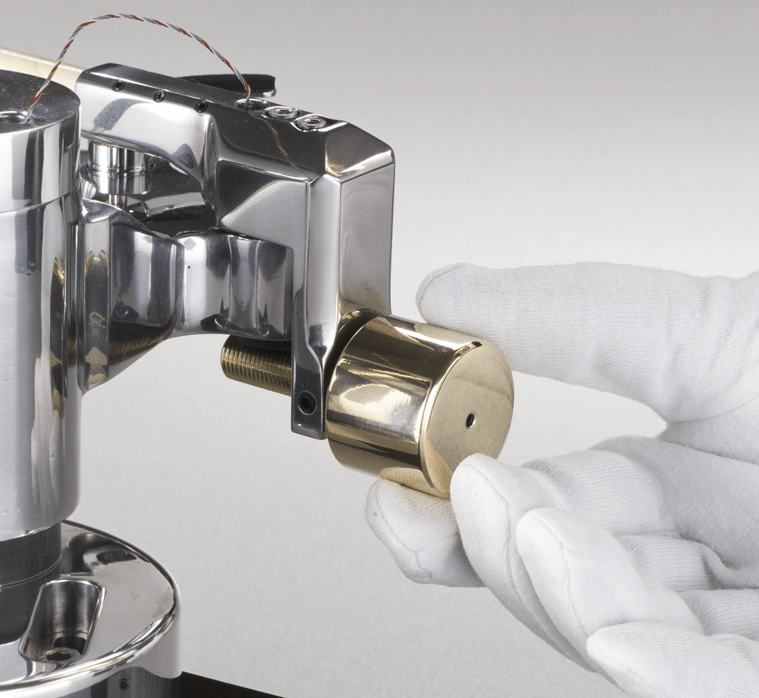

Precise adjustment of the counterweight


The vertical tracking force is adjusted on the counterweight. Made of solid bronze, its fine thread allows precise adjustment while the cantilever is located on the tonearm scale. One turn is equivalent to 0,04 lbs of setting.


Skating / anti-skating: We deliberately do without an anti-skating device. Because this is an oscillating system. That's why we chose one 12.2 inches long tonearm. According to our calculations, this measure is the optimal ratio of a good fit and a moderate horizontal skating force.  So our tonearm gets along without anti-skating.

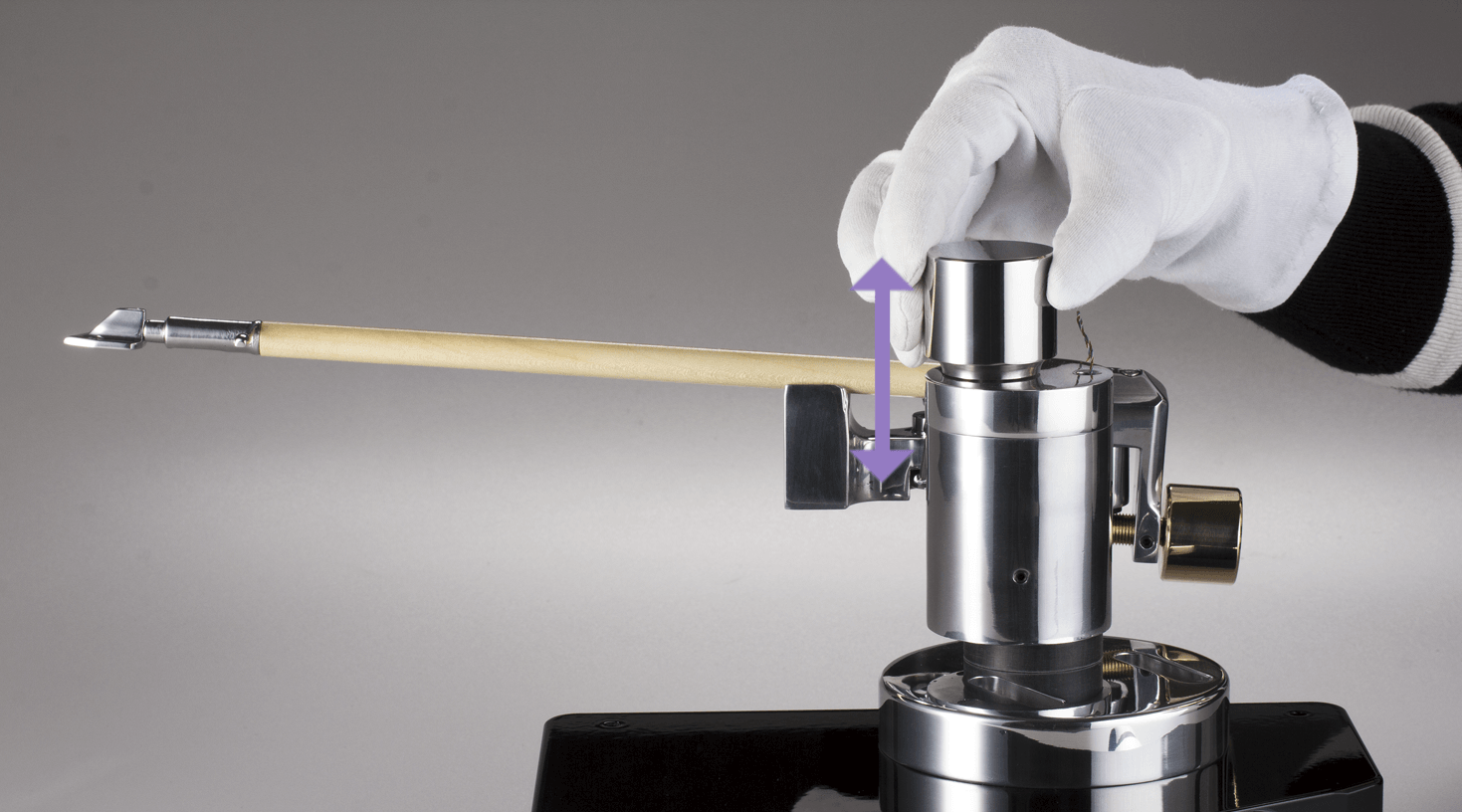

VTA fine adjustment during playback


Setting the vertical tracking angle: With the top knob, the height adjustment can be adjusted conveniently. Also during playback. Use your hearing for this. This allows you to further optimize the sound.

Prevent vibrations


When the VTA is set, the position can be fixed using a clamp pin. We recommend this measure because it also serves to avoid spurious vibrations.



Some more data...


  • Platter weight: 17,64 lbs, turntable weight total: 52,91 lbs.
  • Dimensions: External dimensions/space requirement: w= 23,62 in, t= 15,75 in, h= 7,08 in.
  • The M1 is exclusive manufactured in our manufactory in Lichtenfels, Franconia (Germany). We have our individual parts produced by regional specialist companies. They are carefully quality checked and processed by us. Then we assemble the unit in our company. Each product is carefully inspected and tested by us before it leaves. The M1 is carefully packed in a flightcase. So that he has a safe transport. And equipped with several tools for mounting, as well as a detailed instruction manual.
  • We offer one guarantee 10 year warranty on all mechanical parts and a lifetime warranty for service. We ensure that your M1 retains its value. We are here for you if you have any questions. The M1 is a masterpiece of German engineering and something very unique and exclusive.
