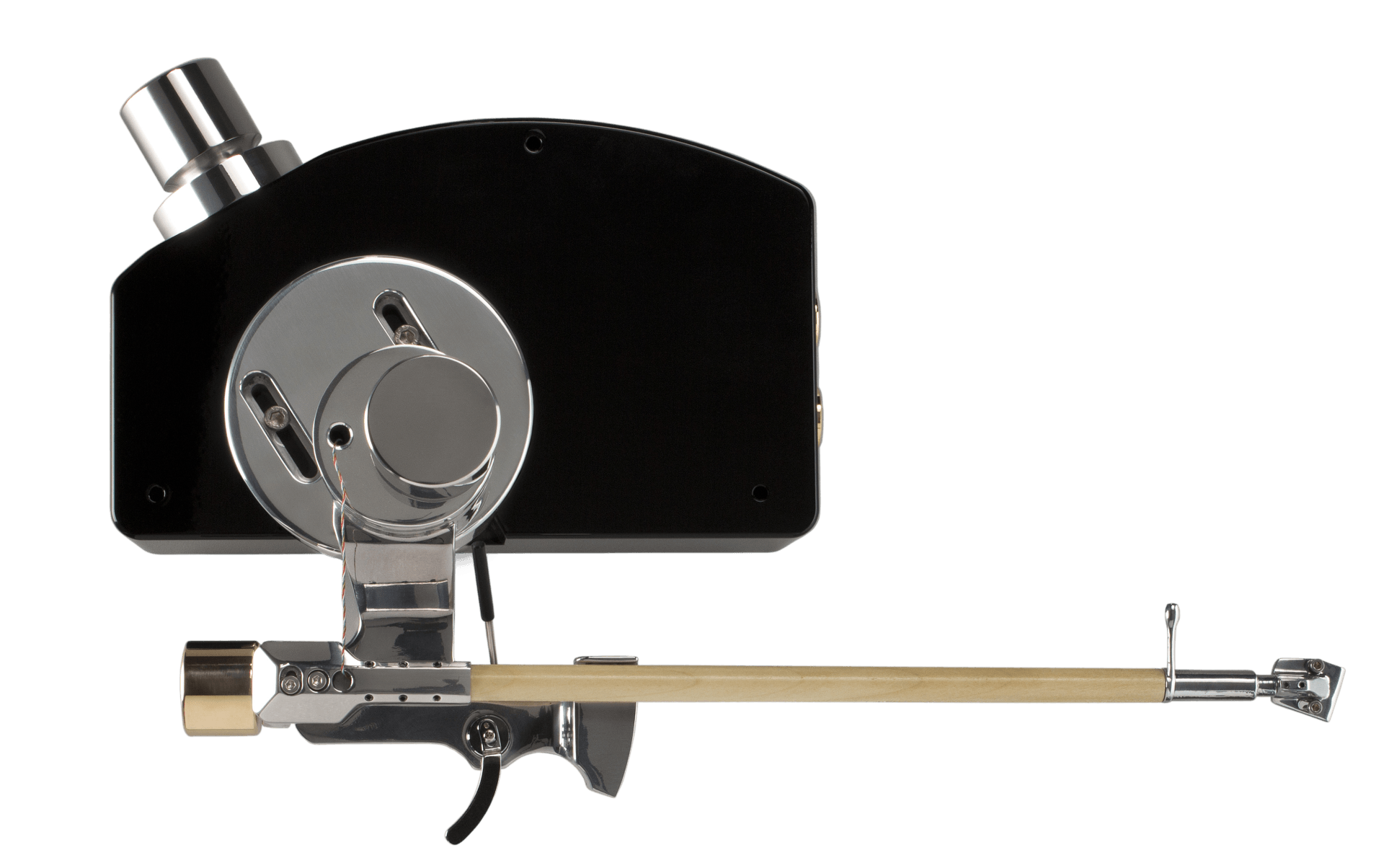

Tonearm Lignum L

Our tonearm Lignum L is placed on the left side of a turntable as an additional tonearm - if there is no other base on the turntable itself. It acts completely independently and has its own very heavy base. We offer the XLR, Chinch or DIN M (SME, 5-pin) variants for connection.  Additional connections for special applications are also possible. For example, connections for a field coil system. We only offer the tonearm in the 12,2 inch version because we deliberately do without an anti-skating device. The Lignum L is one point beared. We have additionally stabilized the bearing for better handling. The VTA setting can be readjusted during playback. It is possible to operate our tonearm with two different geometries - depending on the preference of the owner, it is set with an offset angle of Baerwald  17.4° or straight rigid with 0° degree.


Our
Lignum L  is created for perfect music reproduction. We have equipped it with our Refine® technology. This makes it part of our philosophy, which is based on eliminating disruptive vibrations thanks to an optimal ratio of rigidity and damping. In physics one speaks of "supercritical damping". In this way, the tonearm cannot disturb the music playback signal through natural vibrations - the tonearm transmits the original signal from the recording without adding or omitting anything.  A tonearm cannot do more.


Technical details of the tonearm Lignum L


  • Carbon fiber arm tube with a damping layer made from local wood
  • Stabilized single point bearing
  • Suitable for unsuspended recordplayers with a height of 140mm to 185mm (deviating heights are possible as custom-made products)
  • Massive, approx. 44,09 lbs heavy base with integrated mounting distance adjustment by turning knob and  threaded spindle (adjustment range 1,18 inch). This sets the P2S distance

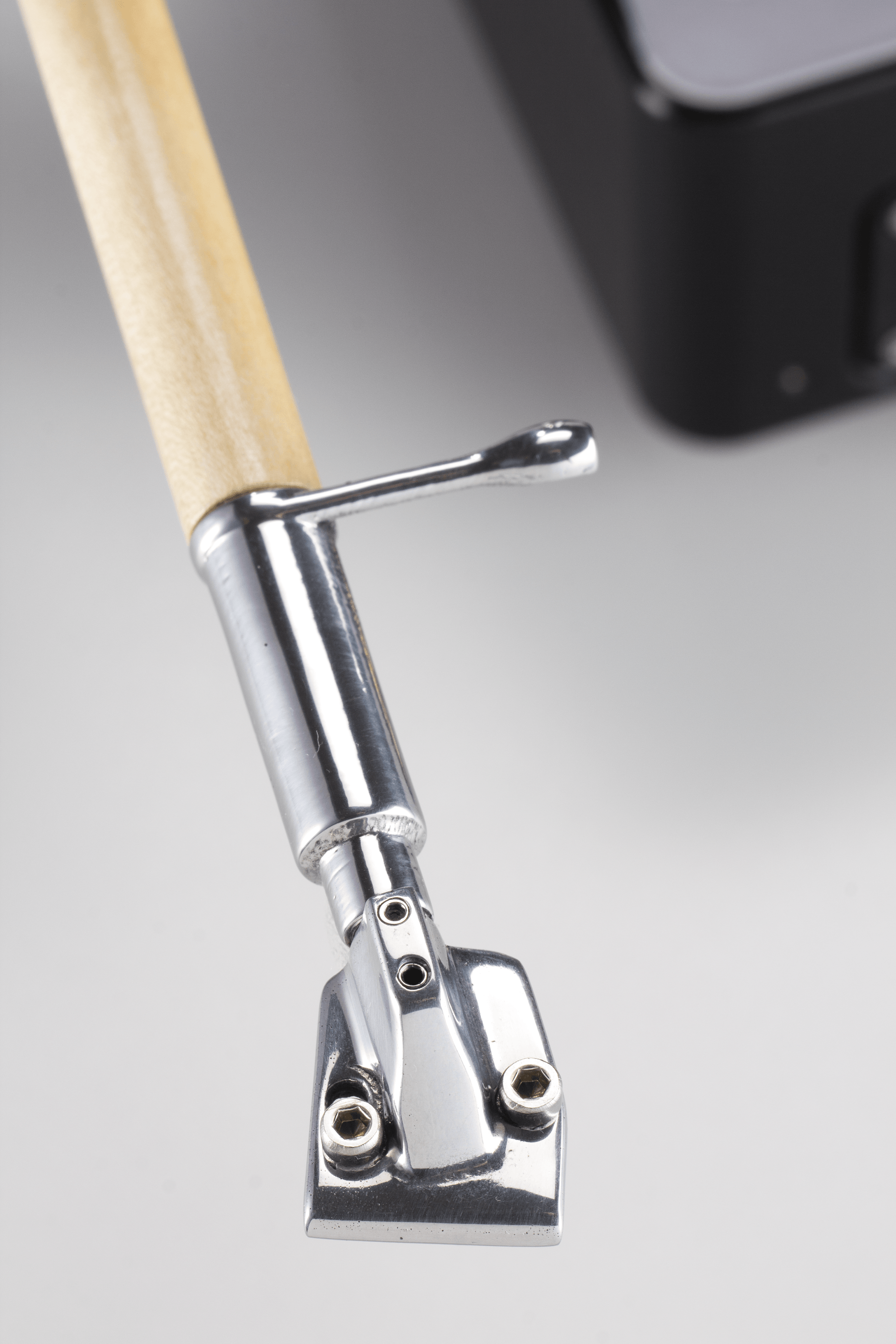

  • Head shell with clamped connector for easy pickup mounting and azimuth adjustment
  • Vertical adjustment (VTA setting) with threaded spindle (adjustment range 1,18 inch) by the turning knob on top
  • Tonearm cable: Cardas HSL PCC ER, silver-plated contacts
  • Available connection variants (ground line routed separately): XLR, RCA, DIN M (SME, 5-pin)
  • Other connections possible
  • Continuous cable from the head shell to the phono stage possible as a custom-made product




offset angle 17,4 °
effective length 12,20 inch 12,28 inch
effective length in inches 12.2 inch 12.3 inch
mounting distance 11,73 inch 12,75 inch
overhang 0,47 inch - 0,47 inch
zero crossing of the track angular error on radius 4,76 inch/ 2,6 inch 3,35 inch
moving tonearm mass 8,11 oz 8,11 oz
effective mass with counterweight in end position close to pivot point 0,48 oz 0,47 oz
effective mass with counterweight in rear position 0,58 oz 0,57 oz
maximum cartridge weight (without additional counterweight) 0,42 oz 0,42 oz
cartridge attachment 1/2 inch 1/2 inch
