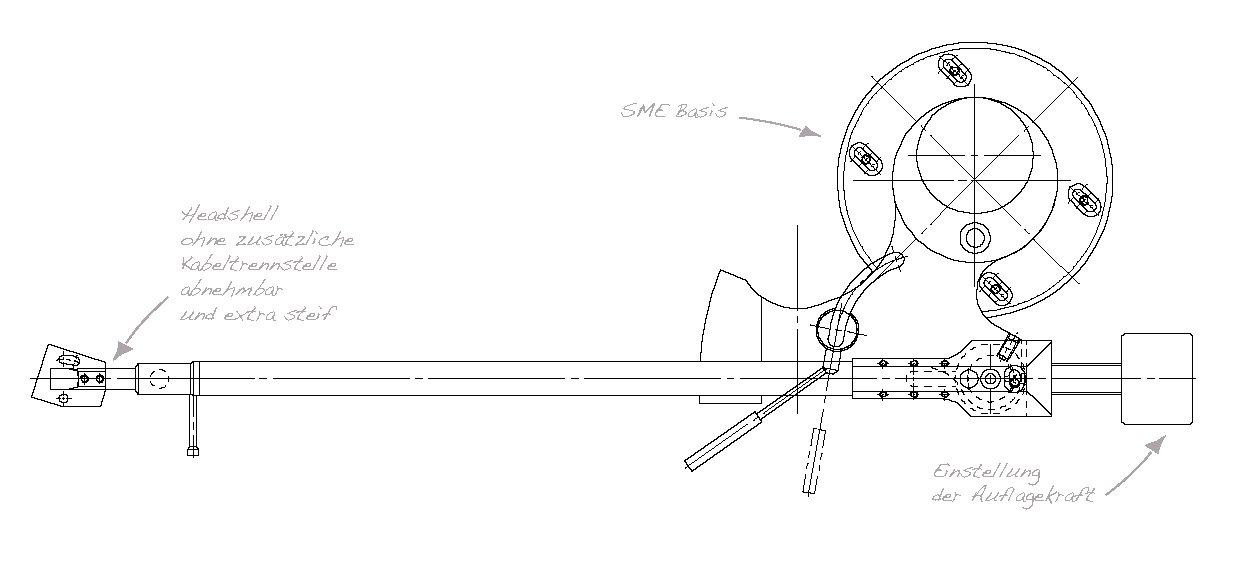

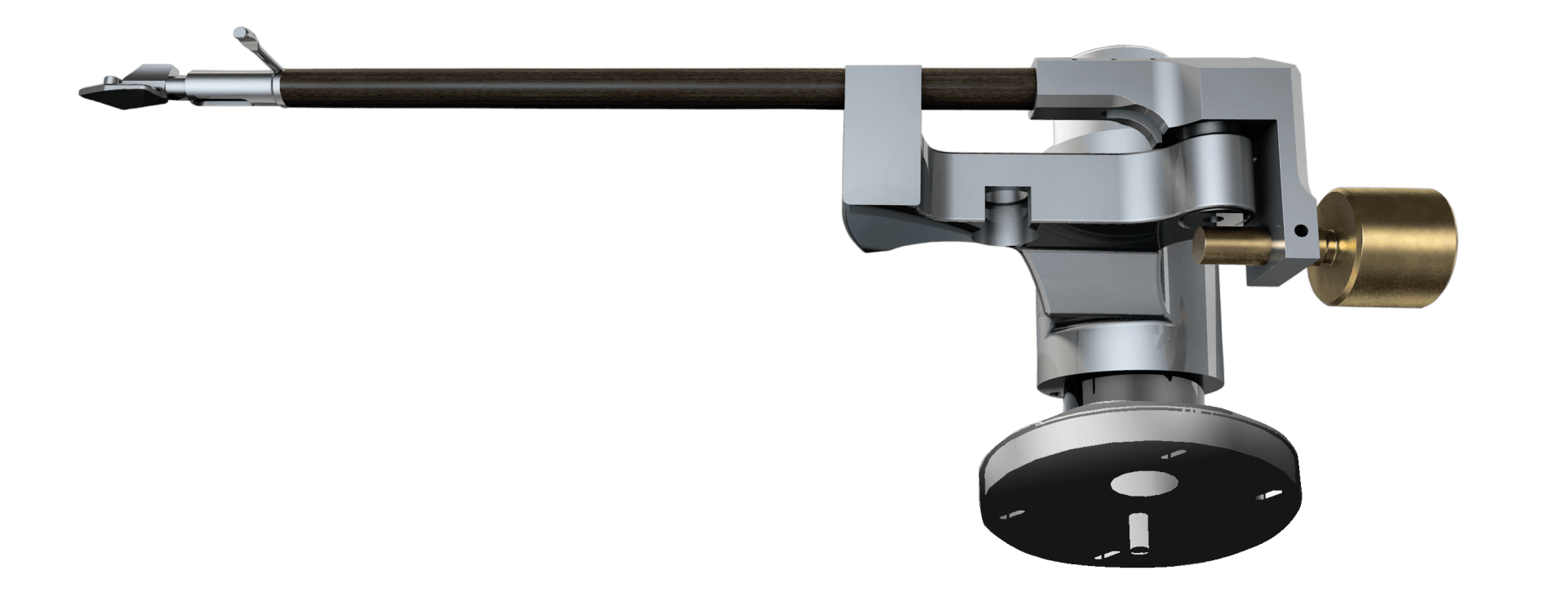

Tonearm Lignum R

Our tonearm Lignum R is created to perfect music reproduction. We have equipped it with our Refine® technology. This makes it part of our philosophy, which is based on eliminating disruptive vibrations thanks to an optimal ratio of rigidity and damping. In physics one speaks of "supercritical damping". In this way, the tonearm cannot disturb the music playback signal through natural vibrations - the tonearm transmits the original signal from the recording without adding or omitting anything. A tonearm can't do more.


Technical details of the tonearm Lignum R


  • carbon fiber arm tube with a damping layer made from local wood
  • stabilized single point bearing
  • head shell with clamped connector for easy pickup mounting and azimuth adjustment
  • vertical adjustment (VTA setting) with threaded spindle (adjustment range 1,18 inch)
  • mounting distance adjustment (adjustment range between 11,65 inch and 12,83 inch)
  • tonearm cable: Cardas HSL PCC ER, silver-plated contacts
  • continuous cable from the head shell to the phono stage possible as a custom-made product

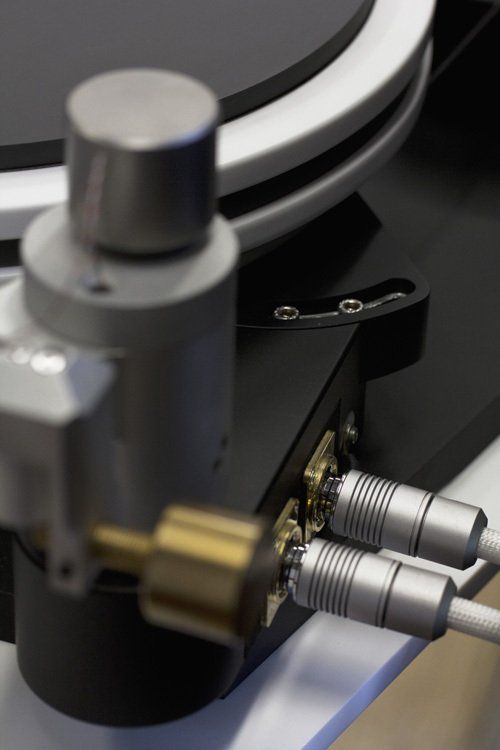

  • available connection variants (ground line routed separately): XLR, RCA, DIN M (SME, 5-pin)
  • two different tonearm geometries
    (offset angle 0° / 17.4° (Baerwald)

offset angle 17,4 ° 0°
effective length 12,20 inch 12,28 inch
effective length in inches 12.2 inch 12.3 inch
mounting distance 11,73 inch 12,75 inch
overhang 0,47 inch - 0,47 inch
zero crossing of the track angular error on radius 4,76 / 2,6 inch 3,35 inch
moving tonearm mass 8,11 oz 8,11 oz
effective mass with counterweight in end position close to pivot point 0,48 oz 0,47 oz
effective mass with counterweight in rear position 0,58 oz 0,57 oz
maximum cartridge weight (without additional counterweight) 0,42 oz 0,42 oz
cartridge attachment 1/2 inch 1/2 inch
